Categories: Components
Sub Category: Capacitors
Material: Plastic

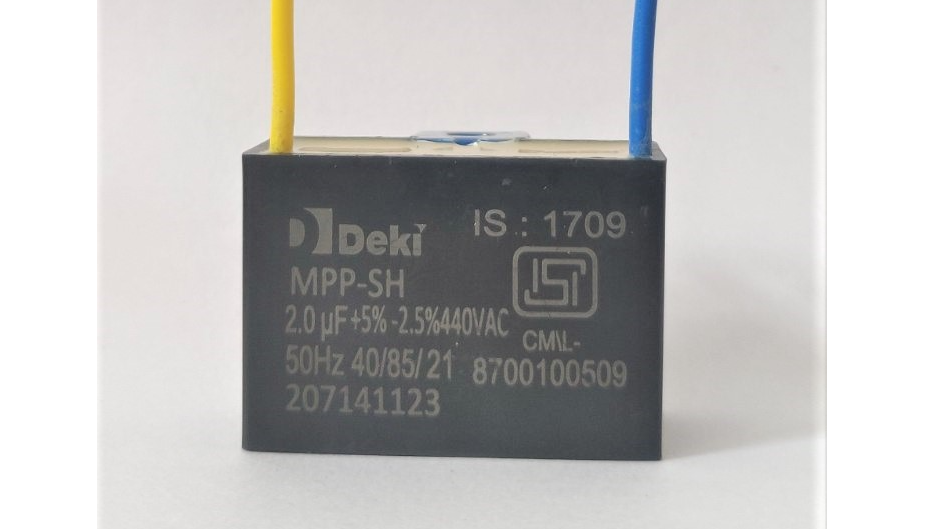

Series Code: - 137 (Round Box), 123(Rectangular), Capacitance Range: - 1-10 µf, Rated Voltage: - 440VAC.
Main Application: - For general sine wave applications, mainly as motor run
capacitor.Construction: - Low inductive wound cell of metallized polypropylene film encased in a flame retardant rectangular or round type box.
Climatic Category: - 40/85/21
Maximum Operating Temperature:- 85°C
Applicable Specification: - IS-1709
Capacitance Value: - 1µF-10µF
Capacitance Tolerance: - ±5%, ±10%
Rated Voltage: - 440VAC
Voltage Proof: - Between Terminals: 660VAC for 10 sec.
Tan δ: - 0.002 at 50 Hz
Endurance Test: - Loaded at 1.25 times of rated voltage at 85°C for 500 hours.
After the Test :-
Δ / : ≤5% of initial value
Increase of Tan δ: ≤0.005
Insulation Resistance: ≥50% of the value mentioned in IR chart.
| Company Name | Deki Electronics Ltd |
| Category | Components |
| Sub Category | Capacitors |
| Activity | Component |
| Core Activity | Manufacturing |
| Location | B-19 &20, Sector-58 |
| Deki Electronics Limited is one of India’s leading manufacturers of film and safety capacitors, supplying global OEMs and industrial customers. The company is ISO 9001, ISO 14001, ISO 45001, and IATF 16949 certified, with UL and ENEC approvals for X2 safety capacitors, ensuring compliance for US and European markets. |
