Hybrid Resistor

Categories: Components

Sub Category: Resistors & Potentiometers

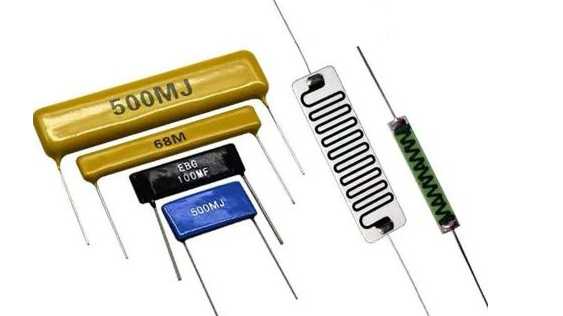

Thick Film Flat & Cylindrical Resistor

Cermet Resistronics Pvt Ltd

Gat No. 61, Plot No. 01 & 02, Shindewadi, Tal-Bhor, Pune - 412205, Maharashtra, India

Enquiry

Product Specification:

Cermet Flat resistors provides stable performance for a wide range of resistance values, with voltage up to 30kv. Low temperature coefficients are available for high stability circuit applications. The space saving planar pacakge offers and alternative to traditional high voltage resistor.

High Voltage Resistors in thick film technology Radial leads,variable lead spacing by bending ,Climate protection by silicone/epoxy coating,Chip version available (without coating). Special Versions possible. resistance Values upto 10 gega-ohm.Low Values of TCR and VCR.

Non-Inductive Type Resistor.
Resistance tolerance +-1 %, 2%, 5%
Temperature operation from -55 to 195 °C
Minimum insulation resistance: 10.000 MΩ
No epoxy coating.
Glaze layer on the resistor and lead-free soldered pads (terminals) for easy solderin
Contact Method between resistive and termination pad
Non-contact resistance as no metal cap is used for termination

About the Company:

Company Name	Cermet Resistronics Pvt Ltd
Category	Components
Sub Category	Resistors & Potentiometers
Activity	Component
Core Activity	Manufacturing
Location	Gat No. 61, Plot No. 01 & 02, Shindewadi, Tal-Bhor, Pune - 412205, Maharashtra, India

Company Details:

Let me take this opportunity to introduce ourselves as a leading manufacturer of Electronics/Electrical resistors in India with rich history of 48 years. We are manufacturing following products - Thick film resistors Power resistors (Dynamic braking, Silicone coated radial type, load banks, Aluminium house, Punched grid) Wire wound resistors Flat type high voltage resistors Thin film resistors
